More shots of my car in progress...Captions are from Neil Yates.

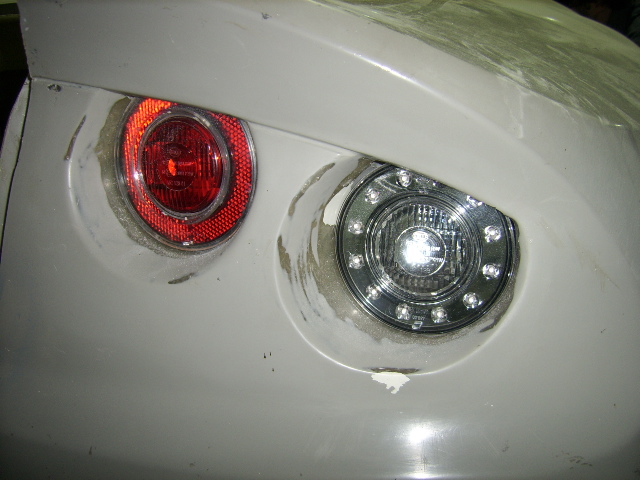

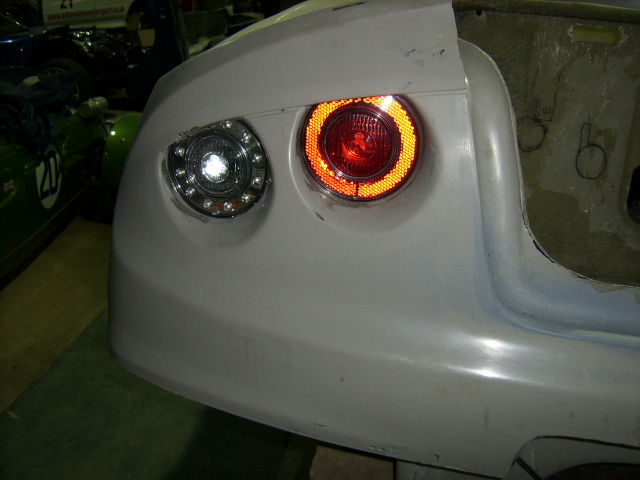

Right hand rear lights trial fitted.

"Right hand rear lights trial fitted."

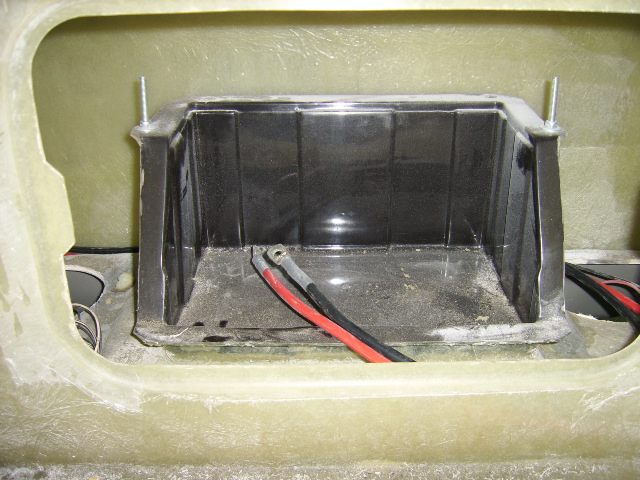

Battery box and bespoke cabling visible through access panel in bulkhead

"Battery box and bespoke cabling visible through access panel in bulkhead."

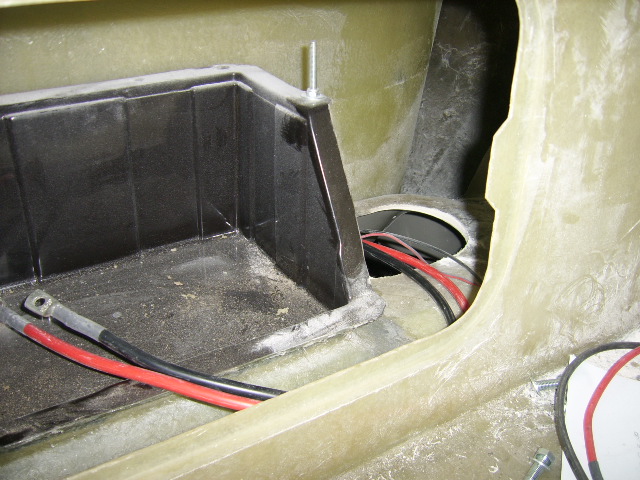

Battery box and fuel tank access hole

"Battery box and fuel tank access hole."


Left hand side rear lights trial fitted

"Left hand side rear lights trial fitted."

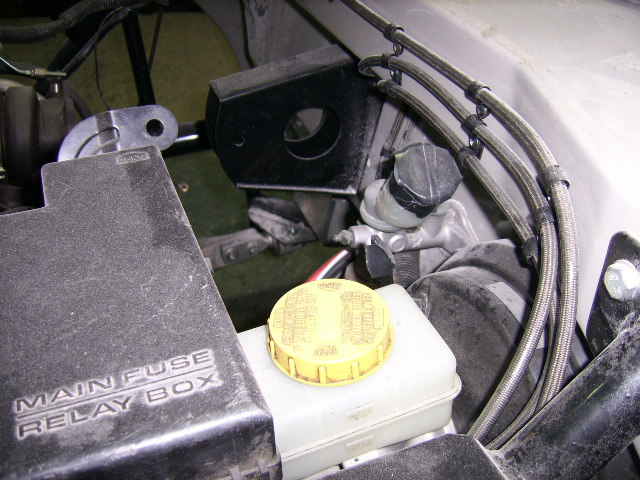

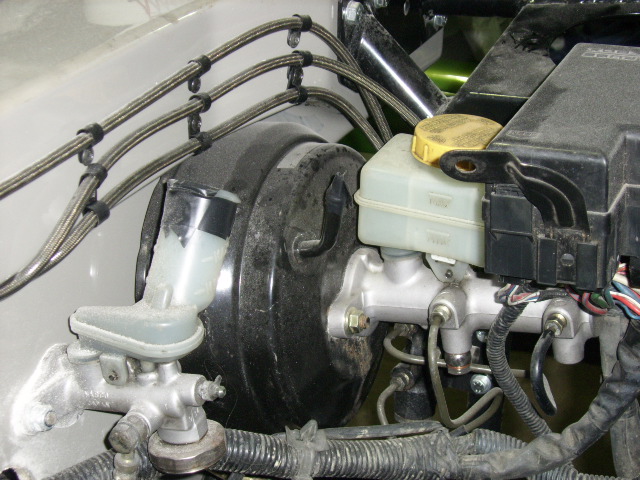

Fuse box, servo, pitch stop mount and three brake lines on front bulkhead

"Fuse box, servo, pitch stop mount and three brake lines on front bulkhead."


As [the previous pic] but from other side

"As [the previous pic] but from other side."

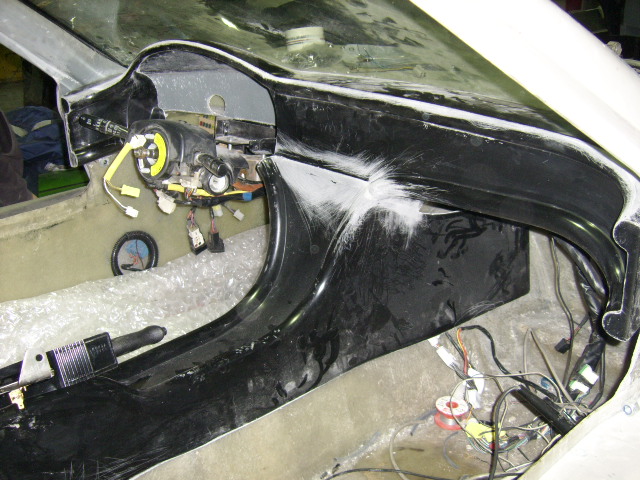

Dashboard trial fitted with wiring loom installed behind it

"Dashboard trial fitted with wiring loom installed behind it."


Tim Ashcroft, lead technician on your build with Will Corry and your car

"Tim Ashcroft, lead technician on your build with Will Corry and your car."


Another shot of Tim and Will

Another shot of Tim and Will.

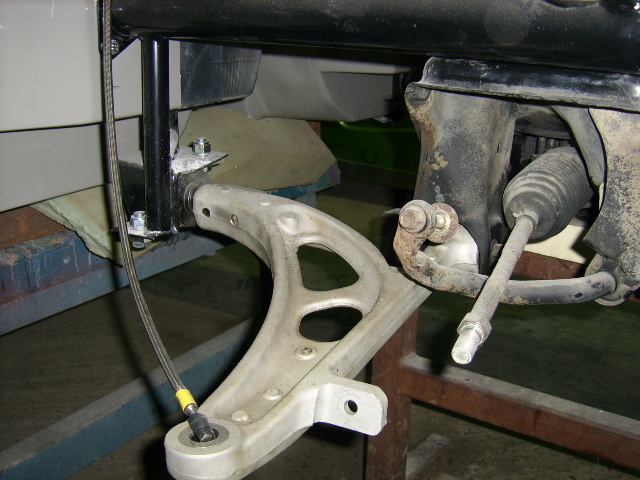

Alloy front wishbone and steering rack awaiting upright and calliper

"Alloy front wishbone and steering rack awaiting upright and calliper."

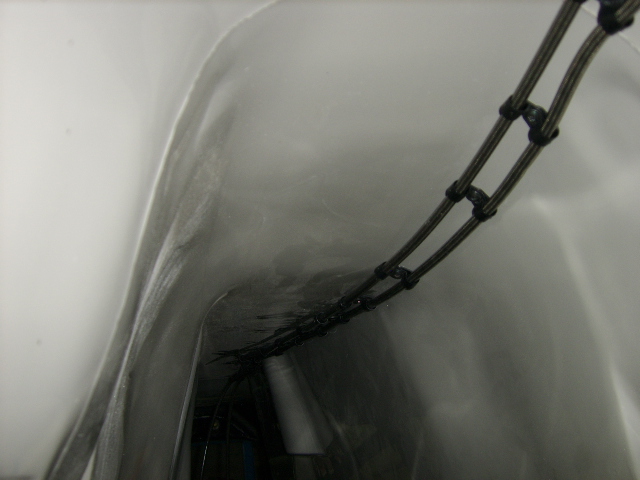

Rear brake lines routed through transmission tunnel

"Rear brake lines routed through transmission tunnel."

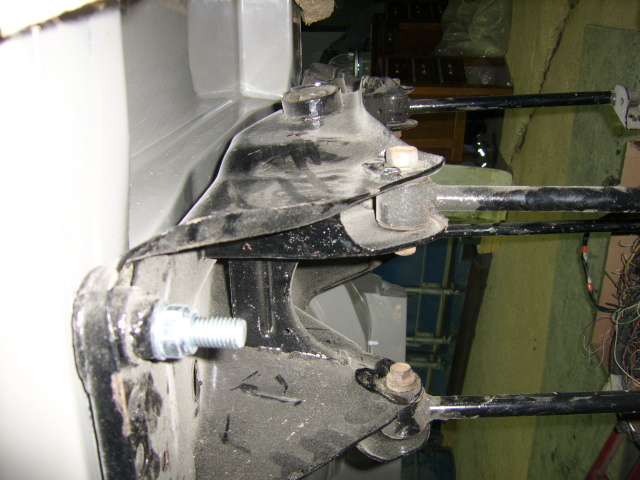

Rear suspension cross member installed

"Rear suspension cross member installed."

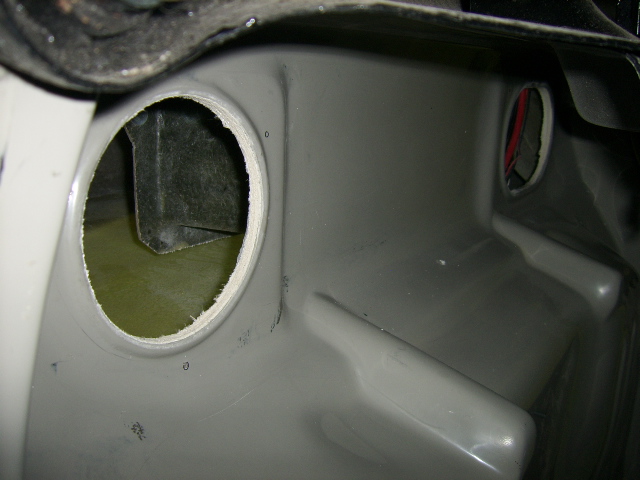

Fuel tank access panels trimmed ahead of fitting fuel tank

"Fuel tank access panels trimmed ahead of fitting fuel tank."


Tim at work underneath the car

"Tim at work underneath the car."

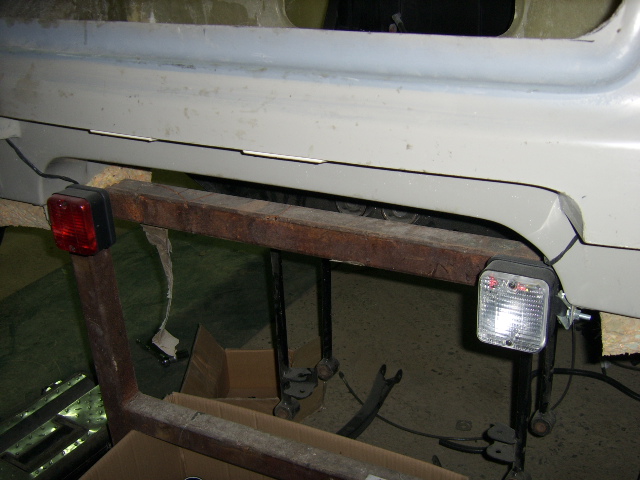

Rear fog and reversing light installed (these sit behind the grill when finished)

"Rear fog and reversing light installed (these sit behind the grill when finished)."

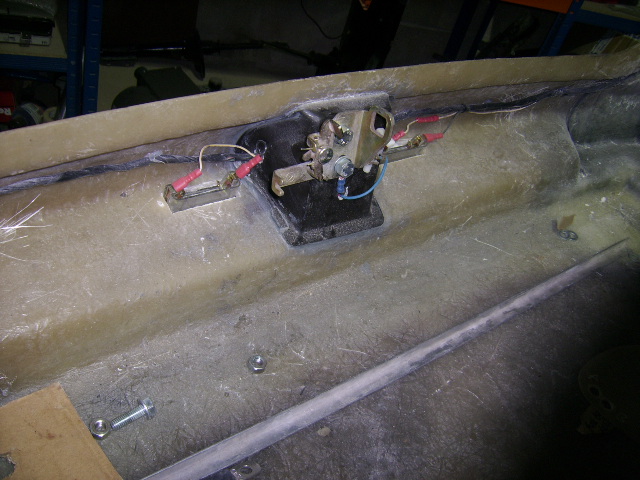

Boot latch, rear number plate lights and rear wiring loom installed

"Boot latch, rear number plate lights and rear wiring loom installed."

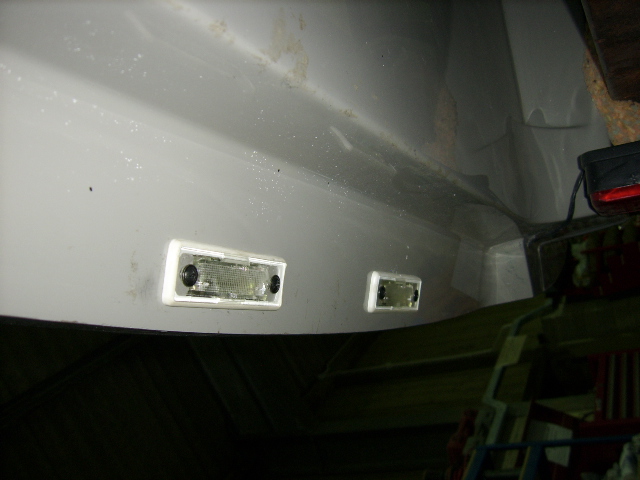

Number plate lights installed

"Number plate lights installed."

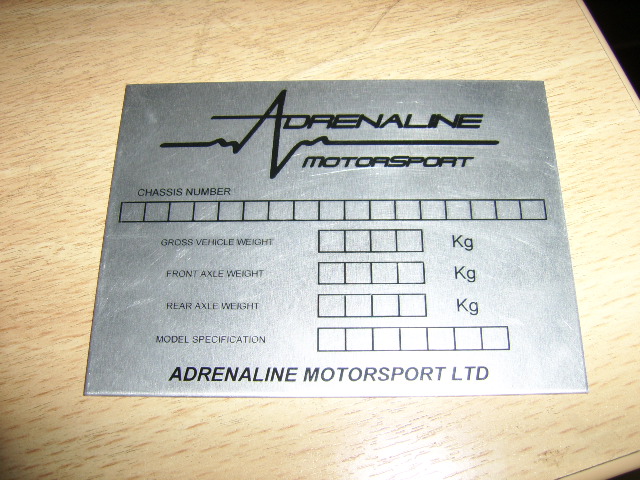

Your chassis plate prior to stamping and fixing to the monocoque

"Your chassis plate prior to stamping and fixing to the monocoque."

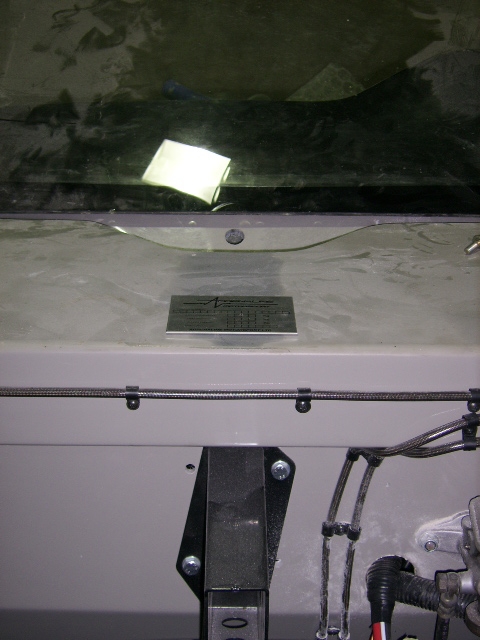

This is where the chassis plate is placed: right under the bonnet

This is where the chassis plate is placed: right under the bonnet.



And another; I thought that you might like this shot that Tim took earlier today looking down the transmission tunnel at the clutch and flywheel. I liked it!

"And another; I thought that you might like this shot that Tim took earlier today looking down the transmission tunnel at the clutch and flywheel. I liked it!"
